TRANSPARENT DIGITAL OVERLAYS · SEE-THROUGH DISPLAY SYSTEMS

Transparent OLED Display Systems for Windows, Showcases and Interactive Spaces

VITREVIA Displays supplies 30-inch, 55-inch and 77-inch transparent OLED modules, monitors, kiosks and mobile interactive systems. We integrate the display, controller, glass, mounting, touch, playback and content interfaces around the selected product format.

Transparent OLED is suited to windows, showcases and spatial installations where the physical scene must remain visible behind digital content. VITREVIA supplies commercial display formats and coordinates the controller, glass, mounting, touch, playback, content tests and service access required for a project-ready installation.

Request a Transparent OLED QuoteCompare 30, 55 and 77-inch Formats

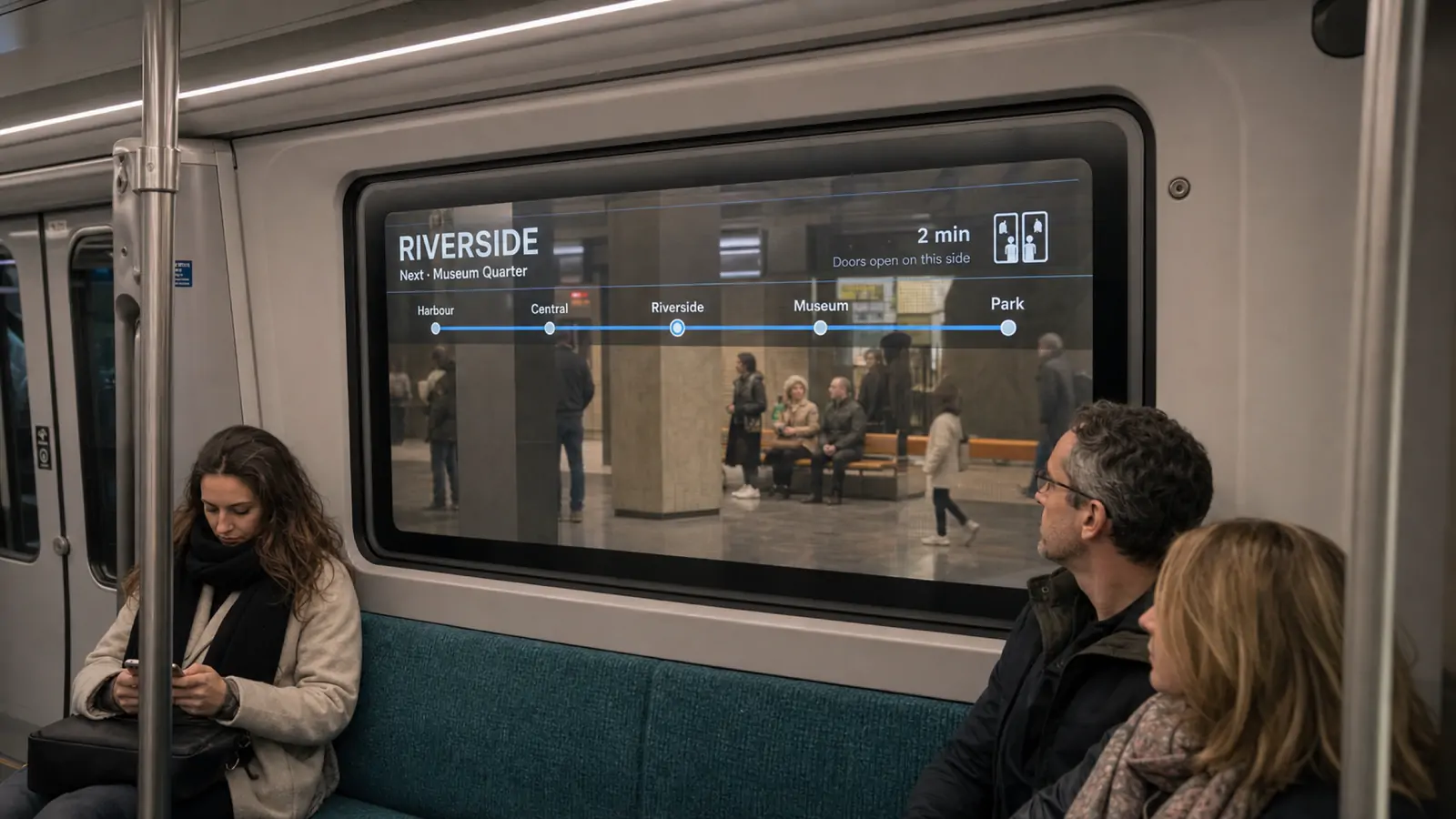

Transparent OLED passenger-information interface integrated into a subway window

Transparent OLED Product Formats

Compare current transparent OLED product references across 30-inch, 55-inch and 77-inch formats.

0130-inch

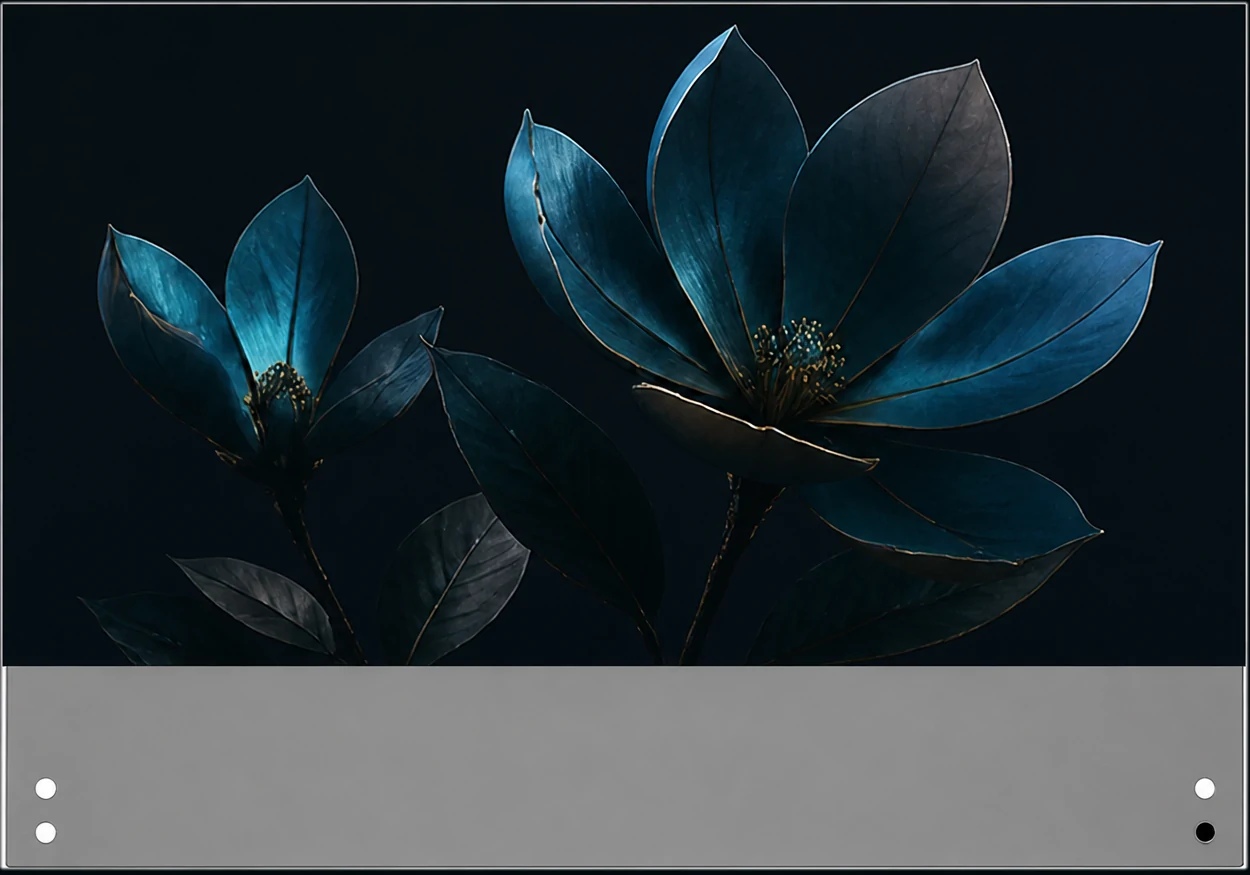

LG 30EW5TP-A transparent OLED touch display

LG 30EW5TP-A

Commercial transparent OLED touch display

Resolution
1366 × 768
Transparency
37%
Luminance
600/200 cd/m² at APL 25%/100%
Refresh
120 Hz
Construction
Display head: 15.3 mm max depth
Operating reference
18 h/day, 7 days/week; moving content only

Application conditionsBase module reference: 0–40 °C. VITREVIA transport configurations have passed project temperature and EMC testing; where specified, the installed configuration is qualified from −40 to +60 °C and engineered for the applicable vehicle EMC requirements. Integration method is project-specific

InteractionNative 10-point PCAP touch; host platform selected for the project

Official LG product page

0255-inch

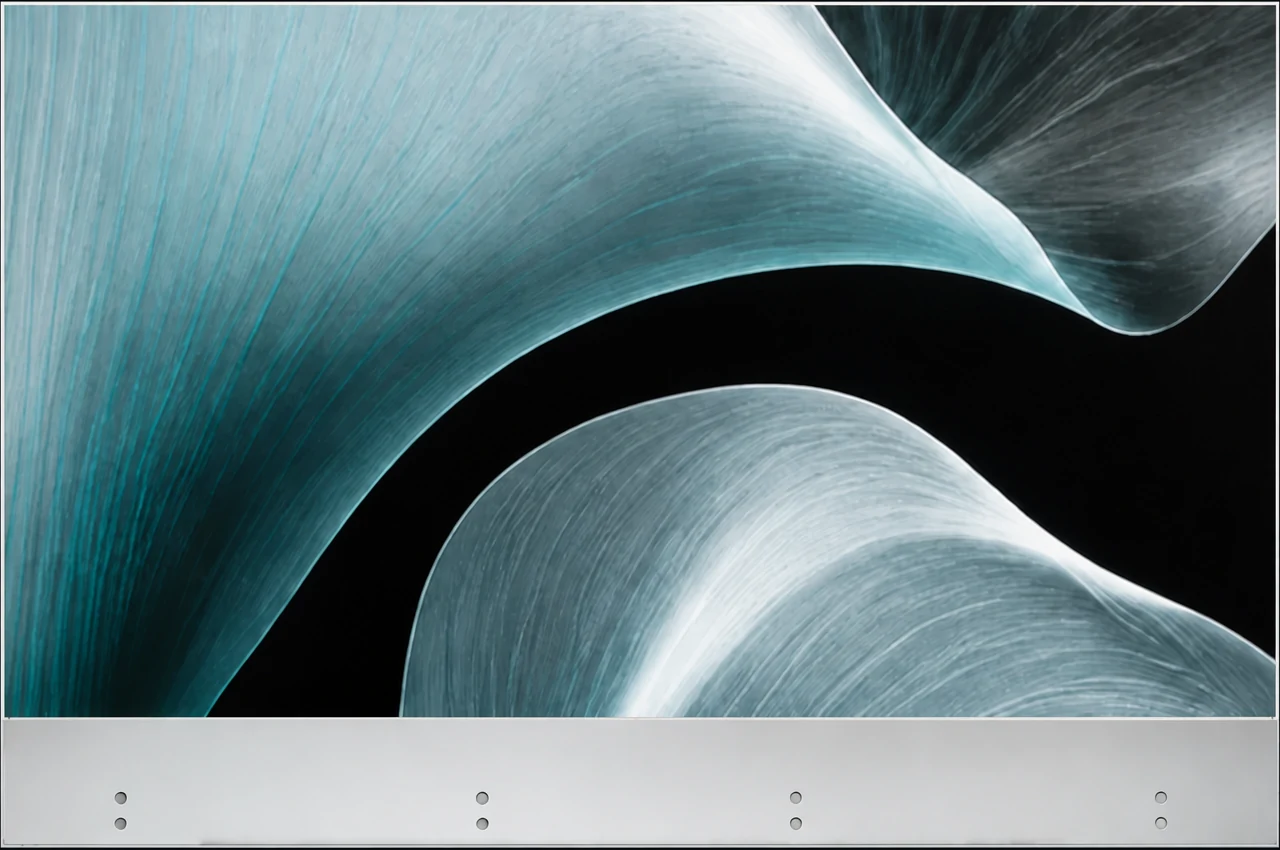

LG 55EW5Q-C commercial transparent OLED display

LG 55EW5Q-C

Commercial transparent OLED signage display

Resolution
1920 × 1080
Transparency
43%
Luminance
600/200 cd/m² at APL 25%/100%
Refresh
120 Hz
Construction
Display head: 14.6 mm max depth
Operating reference
18 h/day, 7 days/week; moving content only

Application conditionsBase module reference: 0–40 °C. VITREVIA transport configurations have passed project temperature and EMC testing; where specified, the installed configuration is qualified from −40 to +60 °C and engineered for the applicable vehicle EMC requirements. Integration method is project-specific

InteractionTouch available as a project-specific integration

Current LG 55EW5Q-C page · LG 55EW5P-M page

0377-inch

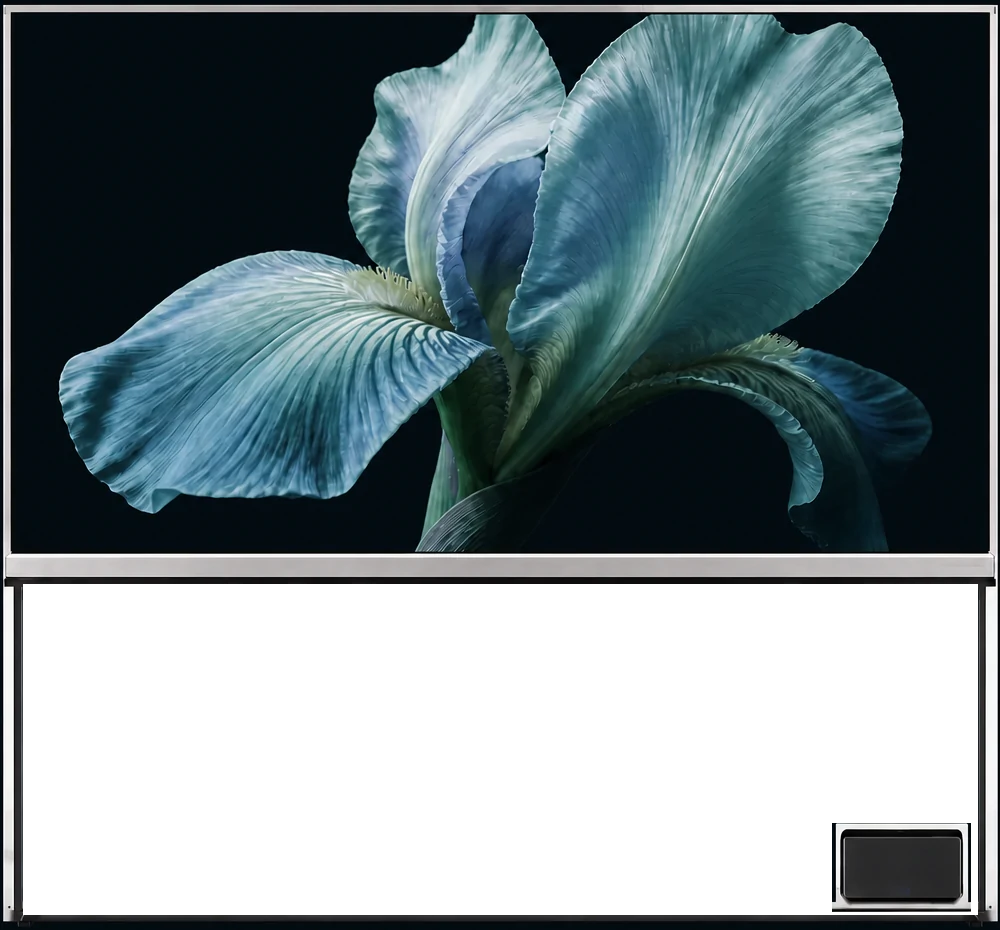

LG OLED77T4PUA transparent display system

77-inch LG SIGNATURE OLED T (OLED77T4PUA)

77-inch transparent OLED display system

Resolution
3840 × 2160
Transparency
Transparent and opaque display modes
Luminance
Model-specific product configuration
Refresh
120 Hz native
Construction
Integrated display with Zero Connect Box
Operating reference
Operating profile defined for the project installation

Application conditionsIndoor feature installations and premium interiors

InteractionTransparent and opaque viewing modes; wireless video/audio from the Zero Connect Box

Official LG product page · LG Newsroom product overview

All three formats are in mass production and available for project supply. Product configuration, mechanics, operating profile and integration package are defined for the selected format and installation.

Mobile Transparent OLED Display

Put a transparent digital host where a fixed screen would block the space. The display from our widely shared demonstration is available for exhibitions, retail, hospitality, showrooms, museums and visitor guidance.

Available for project quotation

VITREVIA model VIT-TOLED-55-M

Display
55-inch
Resolution
1920 × 1080
Transparency
43%
Luminance
600 cd/m² max
Operating time
Up to 8 hours
Touch interface
Integrated touchscreen
Extended operating time
Extended battery configuration by request
Overall size
1775 × 770 × 572 mm
Project configuration
Meet the audienceCustom routes and mobile navigation
Tell the product storyVideo, images and dynamic content
Guide the conversationAI presenter and real-time voice interaction

Compute, AI, touch, charging, battery capacity, content and navigation scope are configured for the project and confirmed in the quotation. Extended operating time depends on brightness, motion duty and the selected battery package.

Request This Mobile Display

55-inch Transparent OLED Display Showcase

Combine a physical product, transparent digital content and a premium showcase structure in one installation. The transparent interior can also become a clean stage for a virtual presenter, branded animation or exhibition content.

Available for project quotation

VITREVIA model VIT-TOLED-55-SC

Display
55-inch
Resolution
1920 × 1080
Transparency
43%
Luminance
Up to 600 cd/m²
Contrast
150,000:1
Touch
Optional PCAP touch
Compute
Optional Android or Windows configuration
Overall size
2002 × 810 × 810 mm
Project configuration
  • Display real products with digital overlays
  • Present a virtual host or digital character
  • Show branded video, animation and product information
  • Use in retail, exhibitions, museums, showrooms and premium brand spaces

The structure uses aluminium profile, tempered glass and sheet metal with AC 100-240 V input. Integrated casters support manual repositioning; the showcase remains stationary during operation.

The virtual presenter shown in the demonstration is content. AI, camera, microphone and voice interaction are project options, not standard built-in functions.

Request This Showcase

Transparent OLED Video Wall Systems

Build a tiled transparent canvas without losing the room, product or exhibit behind it. The array is engineered around the real sightline, display joints, content canvas, structure and service access.

Available for project quotation

VITREVIA system VIT-TOLED-VW

Display formats
30-inch or 55-inch display tiles
Array layouts
1×2, 1×3, 2×2, 2×3 or custom array
Resolution
1366 × 768 (30-inch) or 1920 × 1080 (55-inch), per tile
Transparency
Up to 43%, display-specific
Luminance
200 to 600 cd/m² per tile
Contrast
Up to 150,000:1
Project configuration
InteractionOptional PCAP touch; touch topology defined for the array
PlaybackSynchronized multi-output playback and video-wall processing
MountingWall-mounted, glass-integrated or freestanding structure
Service strategyDisplay access and individual-tile replacement planned with the structure

Display count, joint alignment, structure, touch coverage, playback outputs, operating profile and final dimensions are fixed in the project drawing and quotation. This is a tiled system; visible display joints are part of the selected configuration.

Request This Video Wall

Commercial Transparent OLED Configurations

Start with the experience you want to create, then choose the format that fits it: product display, digital signage, touch interaction, adjustable presentation, self-service, tiled video wall or large-format integration.

Product view

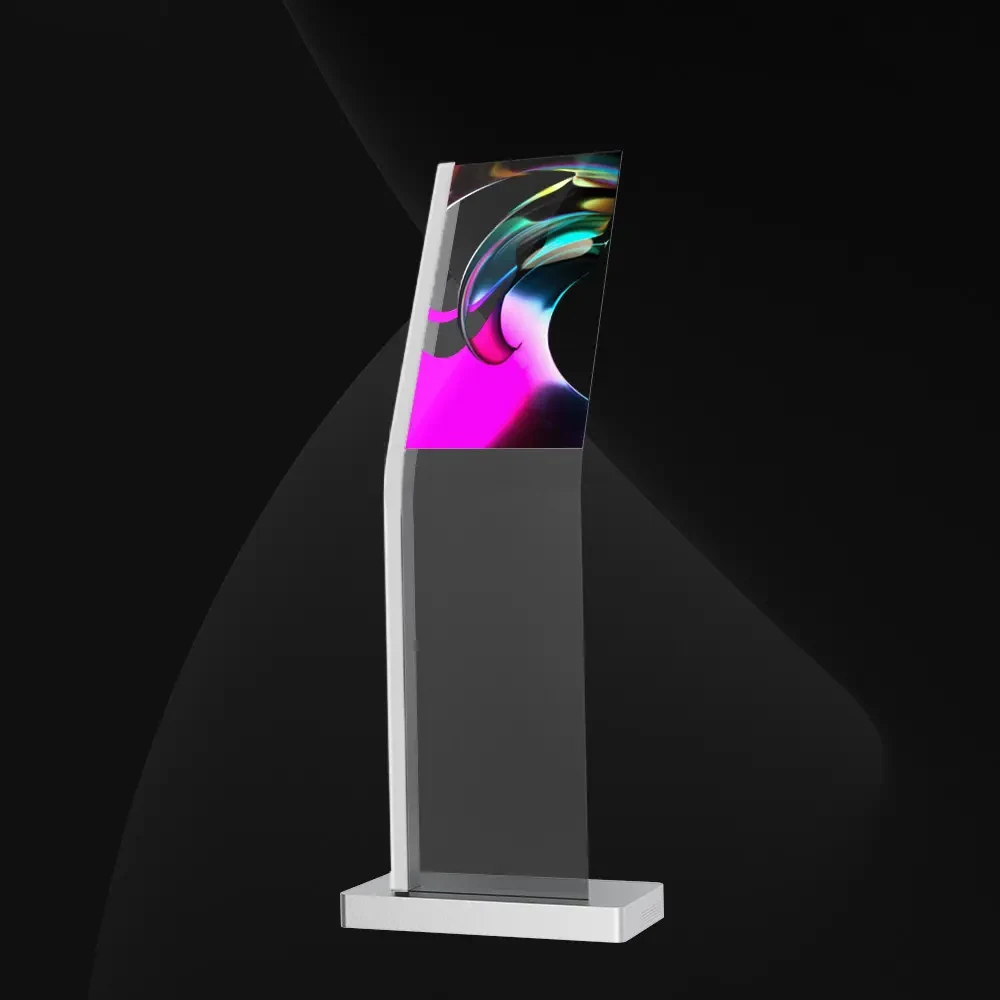

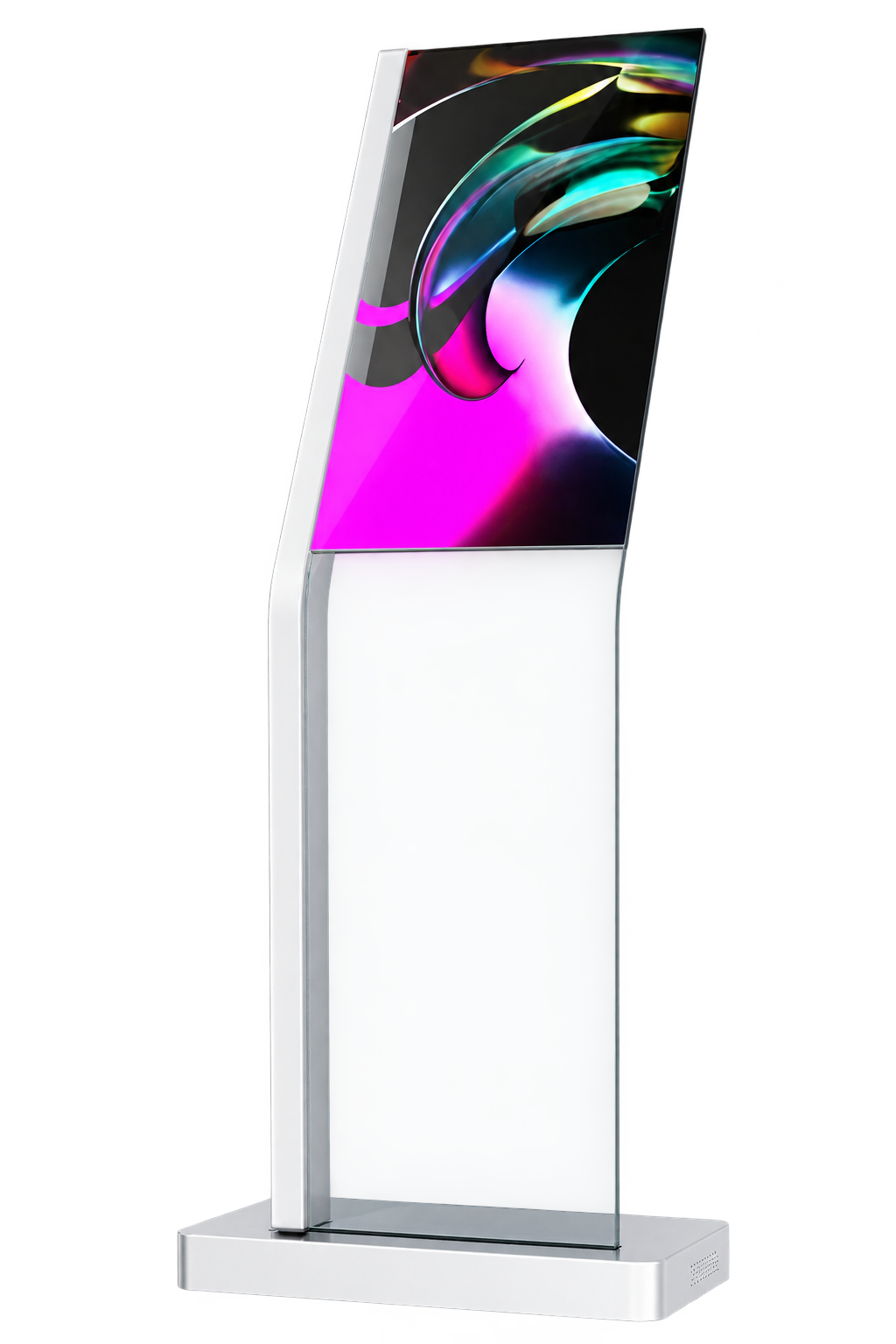

Touch kioskVIT-TOLED-30-TK

30-inch Transparent OLED Touch Kiosk

Compact floor-standing touch kiosk for retail, exhibitions, museums and information points.

Resolution
1366 × 768
Transparency
43%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
135,000:1
Technical reference
Interaction
PCAP touch
Player or OS
Android 11 option, Cortex-A55, 4 GB + 32 GB
Power
Under 100 W
Operating profile
12 hours/day, 7 days/week
Overall dimensions
604 × 1709 mm
Request This Configuration
Product view
Digital signageVIT-TOLED-55-DS

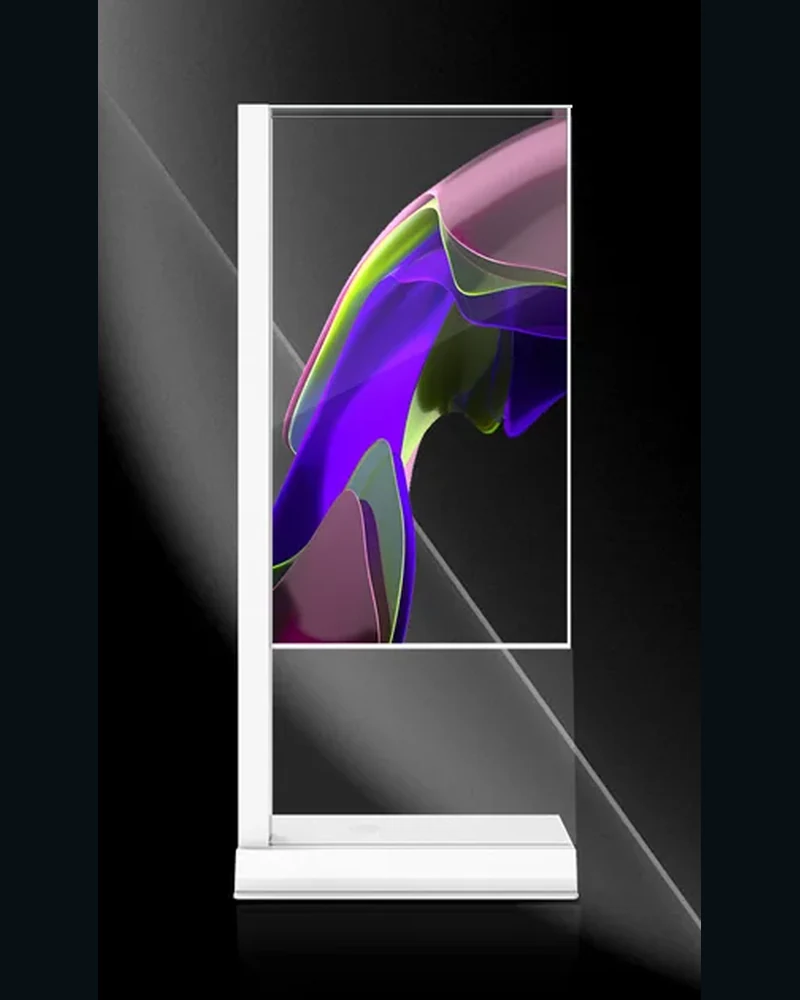

55-inch Transparent OLED Signage Display

Freestanding signage format for exhibitions, retail floors, museums and branded environments.

Resolution
1920 × 1080
Transparency
43%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
150,000:1
Technical reference
Interaction
Display or interactive content configuration
Player or OS
Android 11 option, RK3568, 4 GB + 32 GB
Power
Under 280 W
Operating profile
12 hours/day, 7 days/week
Overall dimensions
1781 × 772 × 361 mm
Request This Configuration
Product view

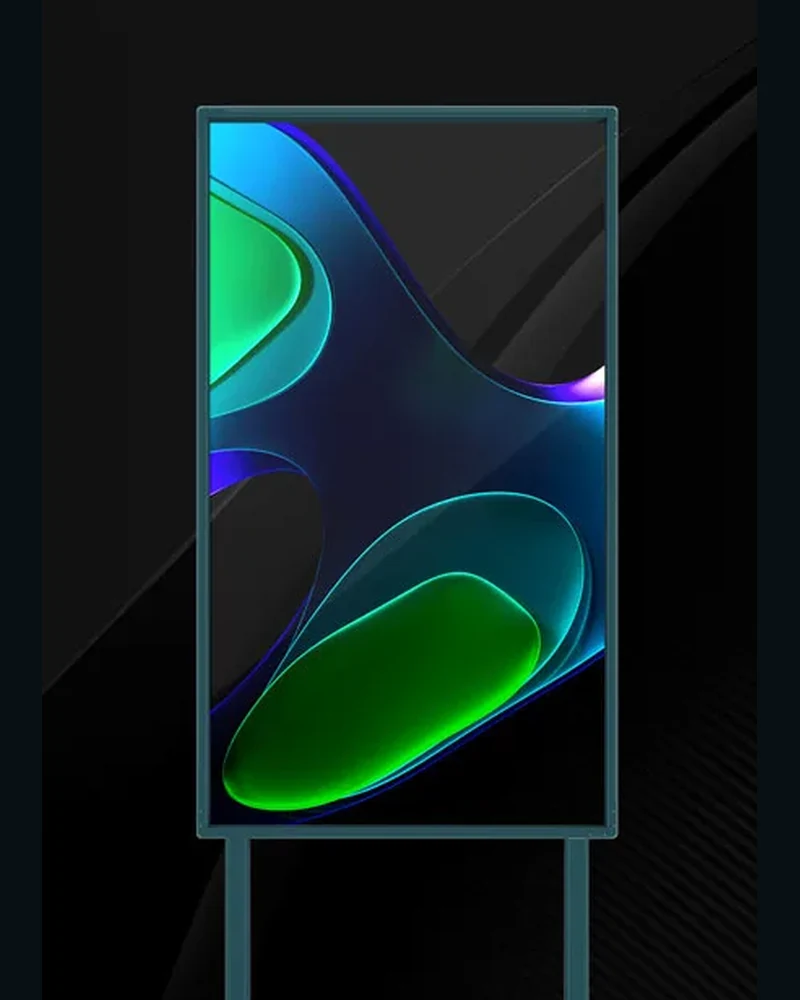

Interactive kioskVIT-TOLED-55-IK

55-inch Transparent OLED Interactive Kiosk

Portrait information and touch kiosk for public guidance, product discovery and visitor interaction.

Resolution
1920 × 1080, portrait format
Transparency
43%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
150,000:1
Technical reference
Interaction
Touch interaction
Player or OS
Android 11 option, Cortex-A55, 2 GB + 16 GB
Power
Under 280 W
Operating profile
12 hours/day, 7 days/week
Overall dimensions
724 × 1809 × 60 mm, 307 mm base width
Request This Configuration
Product view

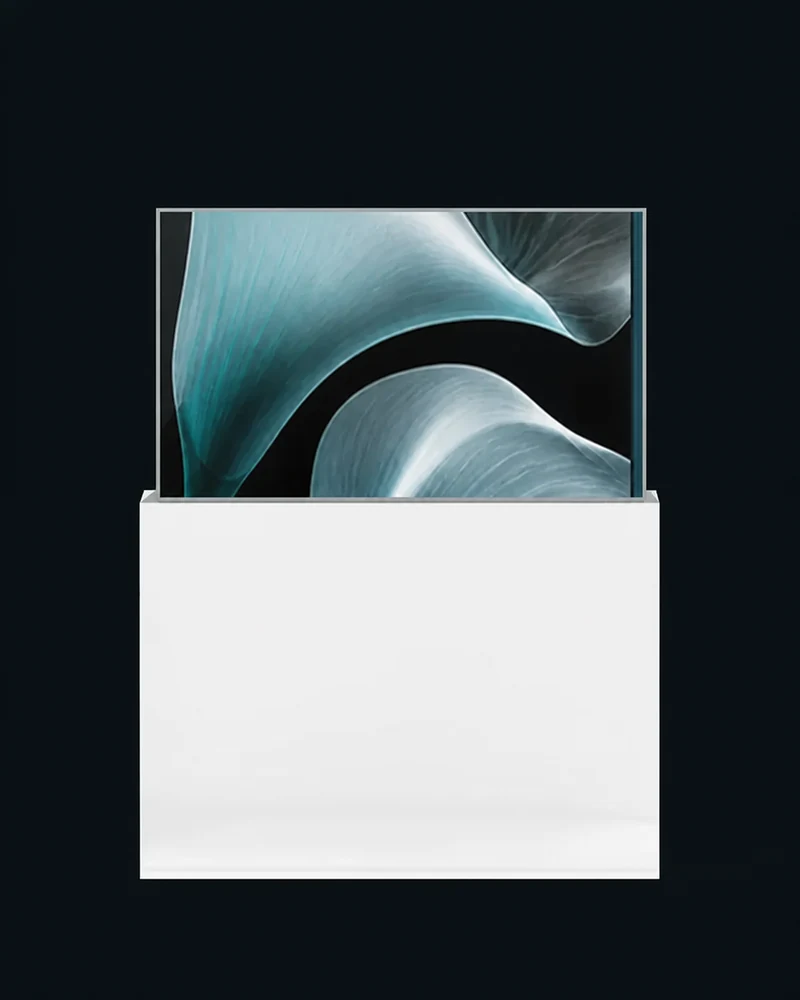

Adjustable displayVIT-TOLED-55-HA

55-inch Height-Adjustable Transparent OLED

Height-adjustable display for product demonstrations, presentations and interactive exhibition use.

Resolution
1920 × 1080
Transparency
43%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
150,000:1
Technical reference
Interaction
Touch and interactive support
Player or OS
Windows high-performance configuration
Power
Under 600 W
Operating profile
12 hours/day, 7 days/week
Overall dimensions
2002 × 810 × 810 mm
Request This Configuration
Product view

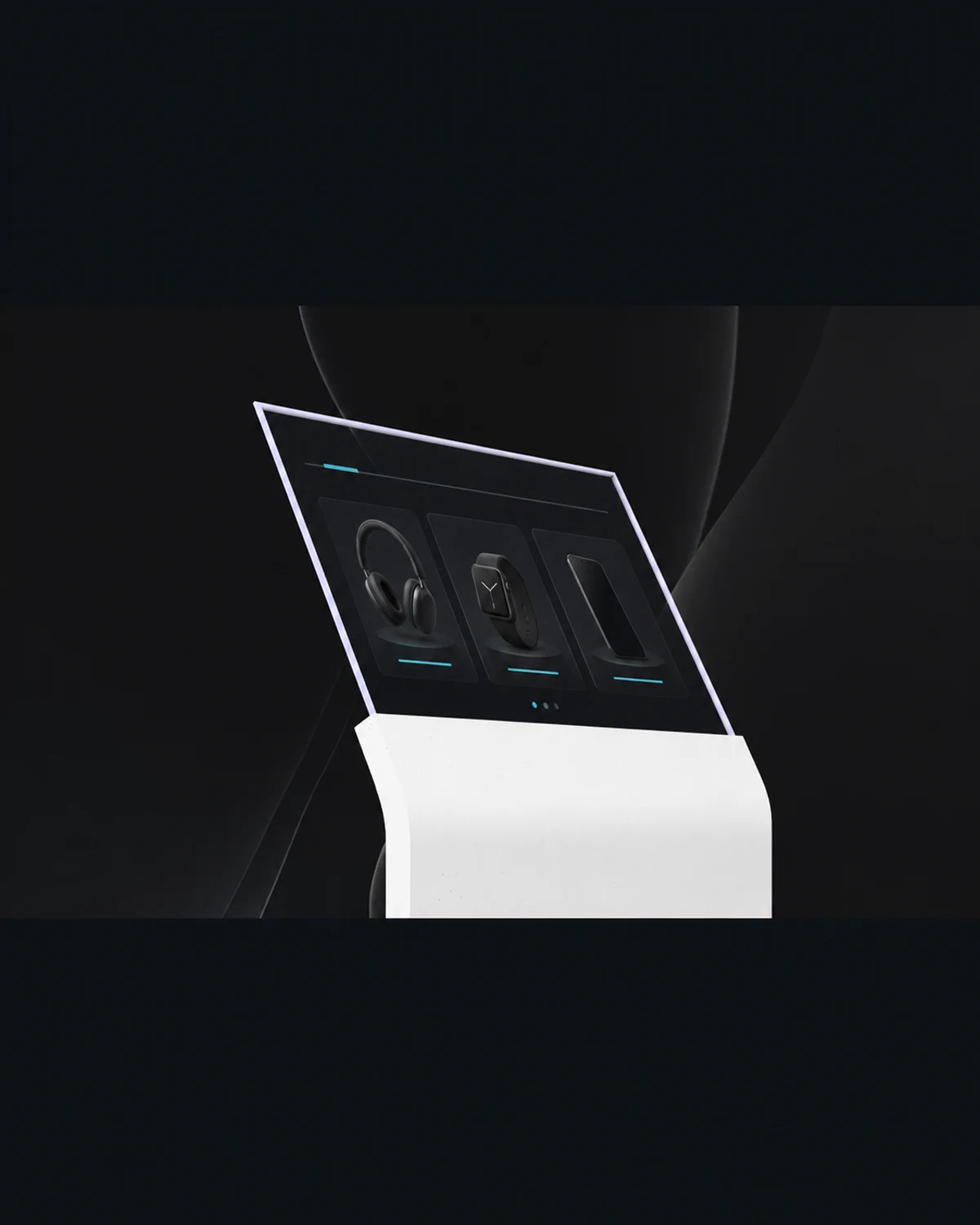

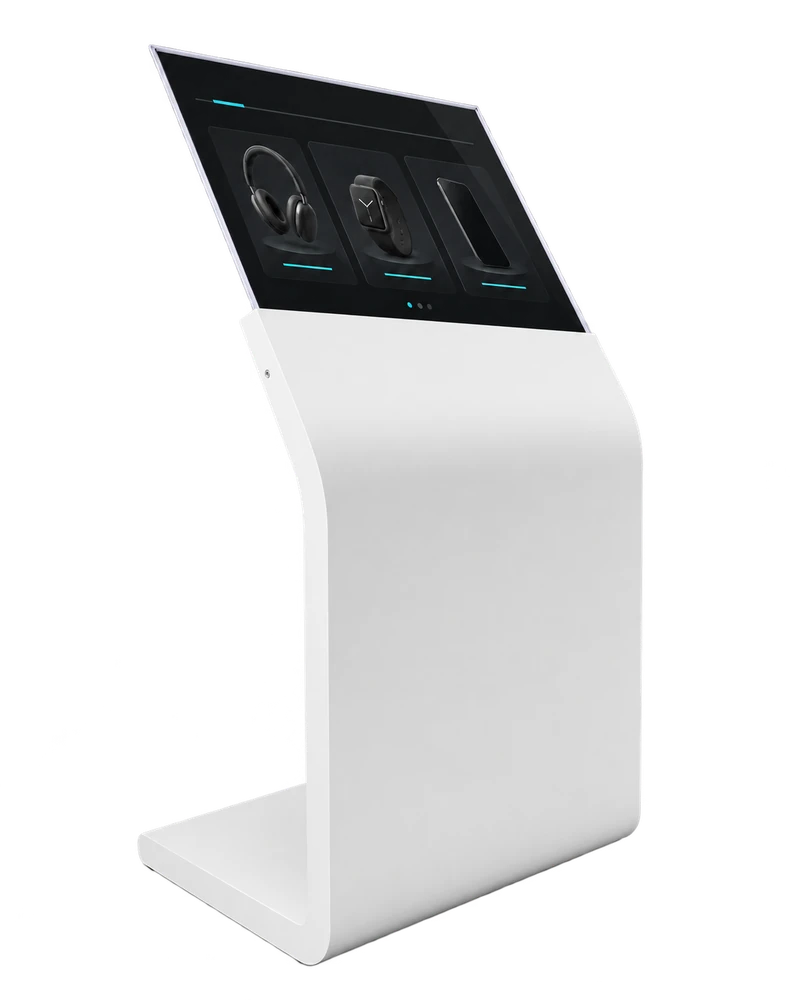

Self-service kioskVIT-TOLED-55-SS

55-inch Transparent OLED Self-Service Kiosk

Floor-standing touch console for self-service ordering, product selection and guided visitor experiences.

Resolution
1920 × 1080
Transparency
43%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
150,000:1
Technical reference
Interaction
Touch interface
Player or OS
Integrated or external player, configured to the application
Power
Defined with the selected player and enclosure
Operating profile
Project operating profile
Overall dimensions
Final enclosure drawing issued with the quotation
Request This Configuration
Product view

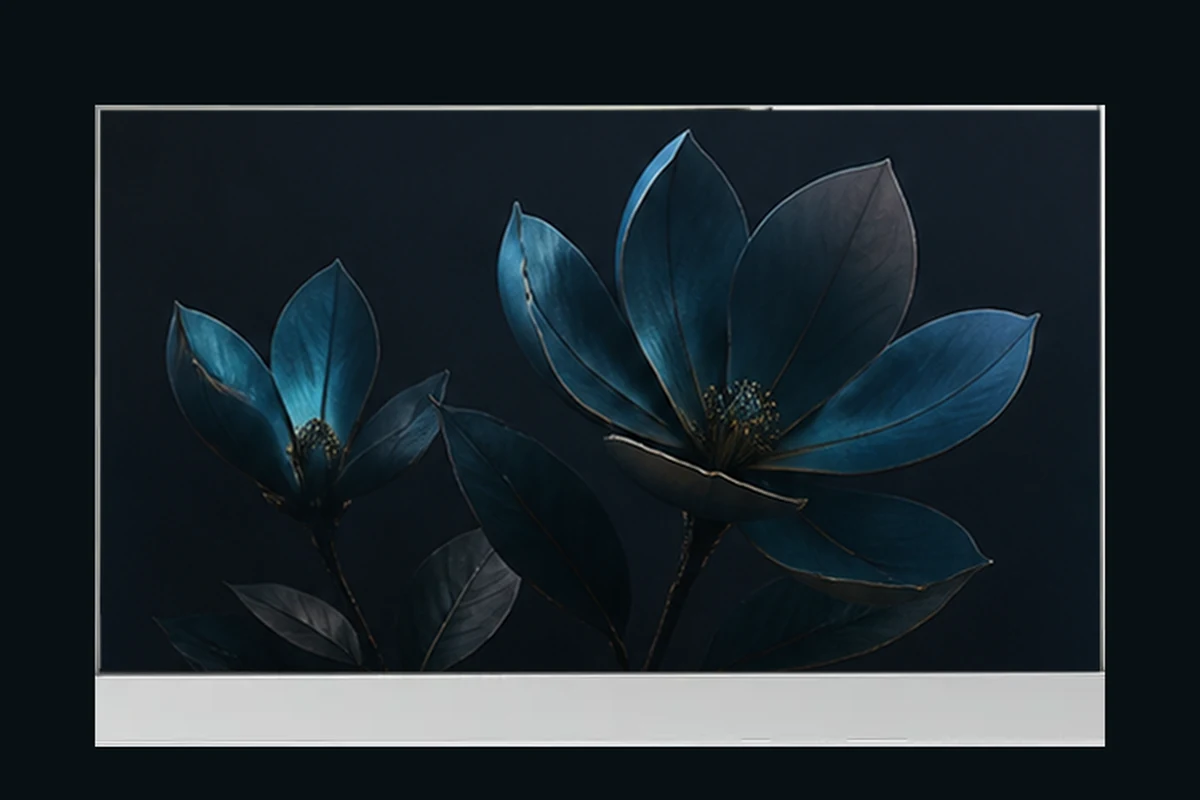

Commercial moduleVIT-TOLED-77-M

77-inch 4K Transparent OLED Module

Large-format commercial module for custom showcases, partitions and integrated display structures.

Resolution
3840 × 2160
Transparency
45%
Luminance
200 to 600 cd/m², automatic adjustment
Contrast
200,000:1
Technical reference
Interaction
Optional touch or gesture control
Player or OS
External player and project control system
Power
Under 190 W
Operating profile
12 hours/day, 7 days/week
Overall dimensions
1720.3 × 1078.1 × 17 mm
Request This Configuration

The quotation fixes the selected product revision, touch and compute configuration, interfaces, operating profile, mechanics and acceptance documents.

Ways to Work with VITREVIA Displays

Order the product, an integrated display package, a prototype program or production delivery.

Transparent OLED Product Supply

30-inch, 55-inch and 77-inch modules, monitors, kiosks and mobile systems supplied with matched control hardware.

Integrated Display Package

Display, controller, glass, frame, power, cabling, touch and playback coordinated as one installation package.

Prototype and Viewing Test

The selected format is reviewed with the real background, lighting, glazing, content and interaction.

Production Delivery

Approved drawings, hardware configuration, inspection criteria, packing and handover files are controlled for delivery.

Transparent OLED Advantages

Transparent OLED adds a digital layer while keeping the physical scene and spatial openness central to the experience.

Preserve the View

Keep the environment, object or person behind the display visible.

Overlay Digital Content

Place digital information over a real product, artifact, view or physical space.

Maintain Openness

Add media while retaining an open architectural view through the display area.

Create Interaction

Use native touch where the selected model provides it, or engineer a separate touch, sensor, reader, CMS or data interface for the project.

Transparent OLED in Use

See transparent OLED applied to glass, mobility, showcases and public environments.

Transparent OLED and Mobility

Glass, window and partition applications where background visibility is part of the system value.

Application viewTwo-by-two transparent OLED video wall integrated into a glass meeting-room partition

Transparent OLED video wall

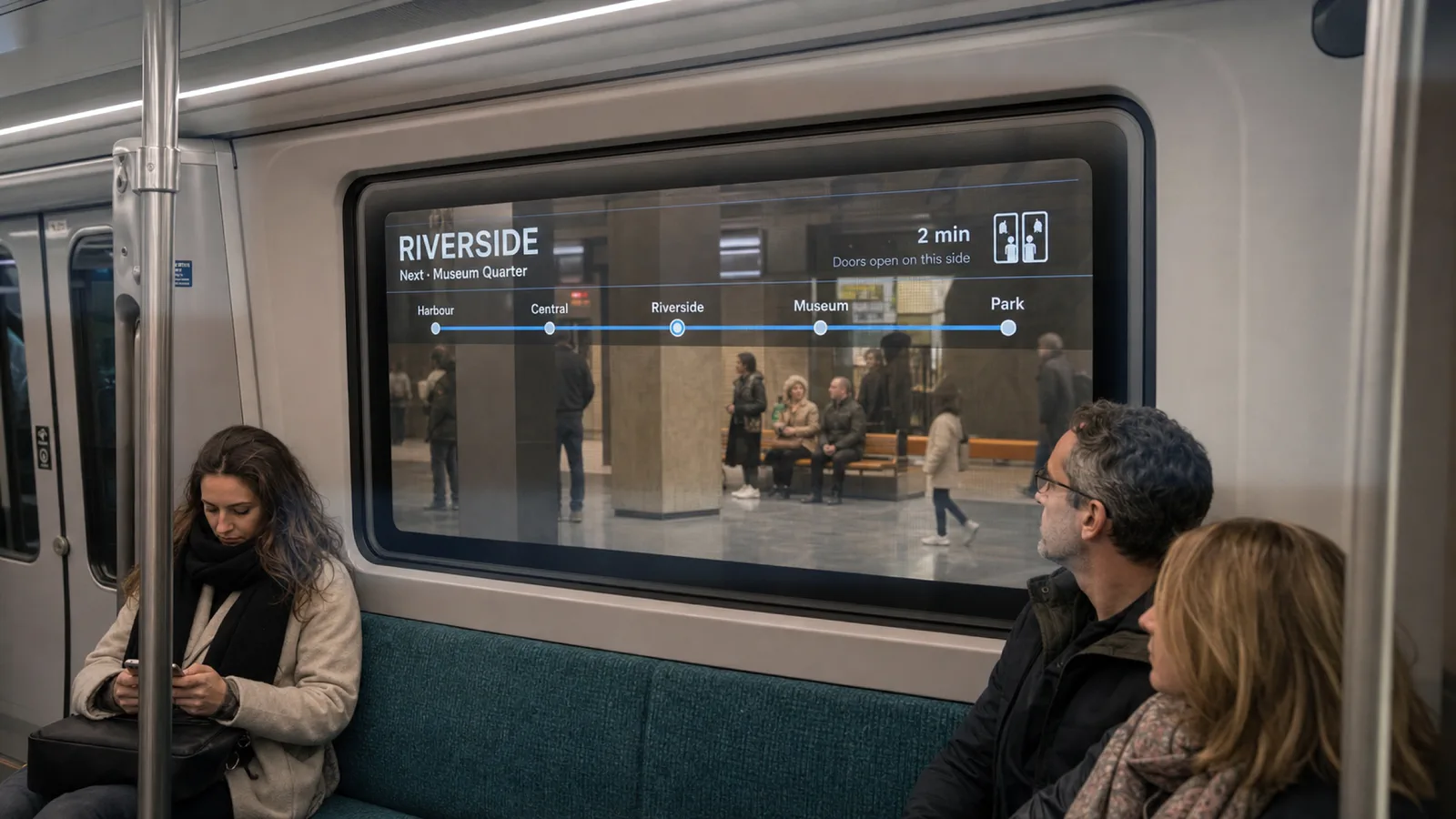

Application viewMetro window transparent OLED display shown in a rail interior mockup

Metro window display

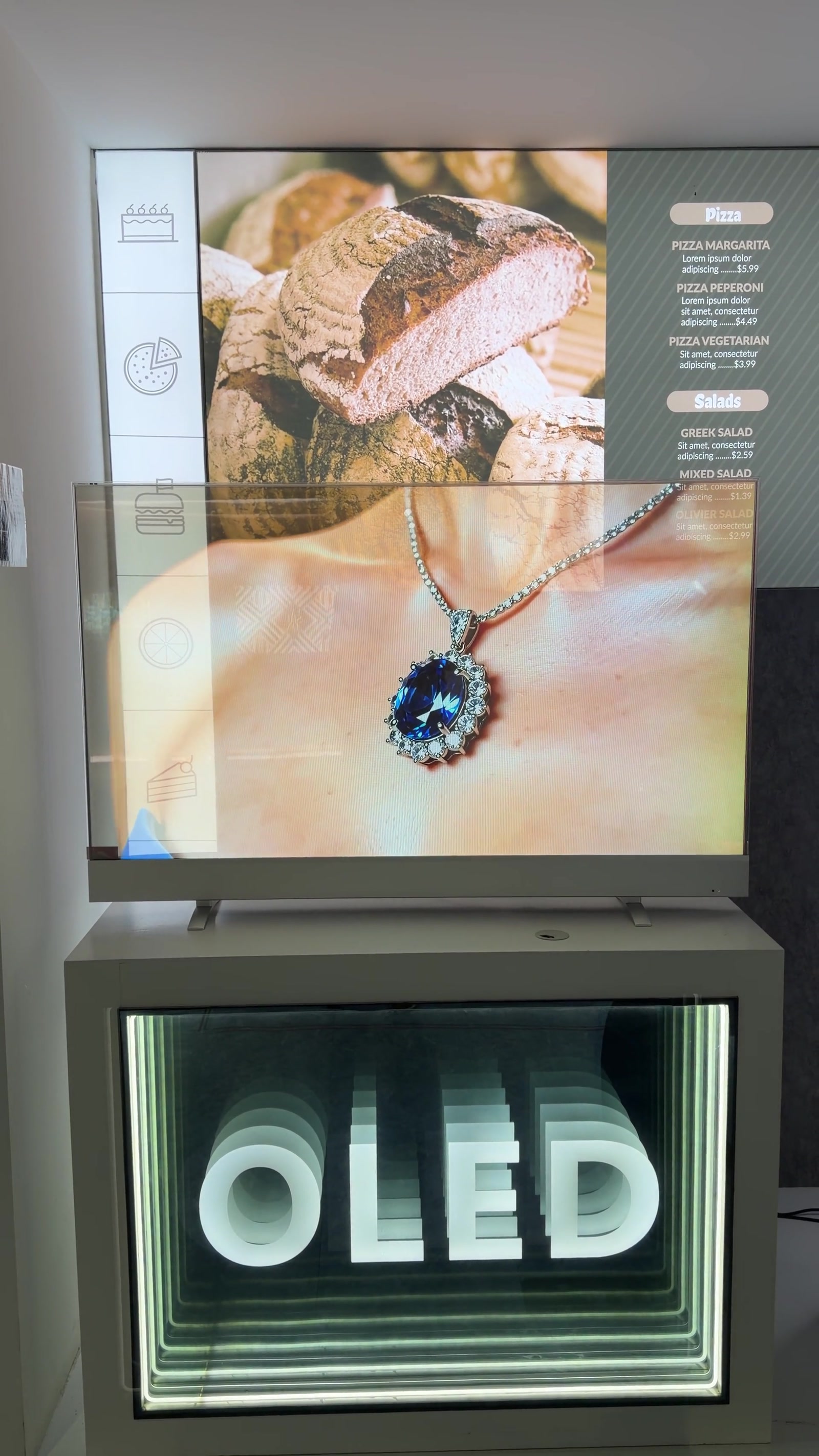

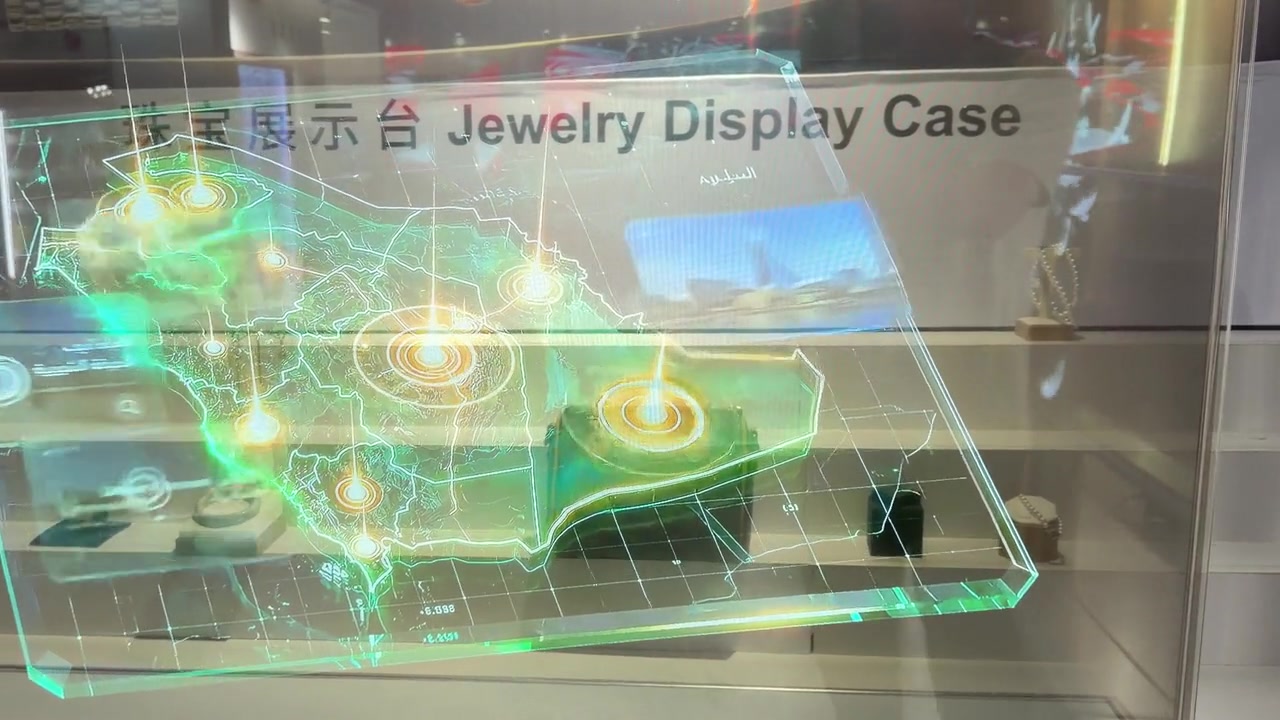

Application viewClose view of a real transparent OLED showcase demonstrating content over the visible physical display

Showcase transparency demonstration

Retail and Product Displays

Transparent and showcase-style formats where the product remains part of the visual composition.

LG 30EW5TP-A transparent OLED touch display

LG 30EW5TP-A

LG 55EW5Q-C commercial transparent OLED display

LG 55EW5Q-C

LG OLED77T4PUA transparent display system

77-inch LG SIGNATURE OLED T

Plan the Transparent OLED System

Resolve the display environment, system interfaces and acceptance criteria before the configuration is released for production.

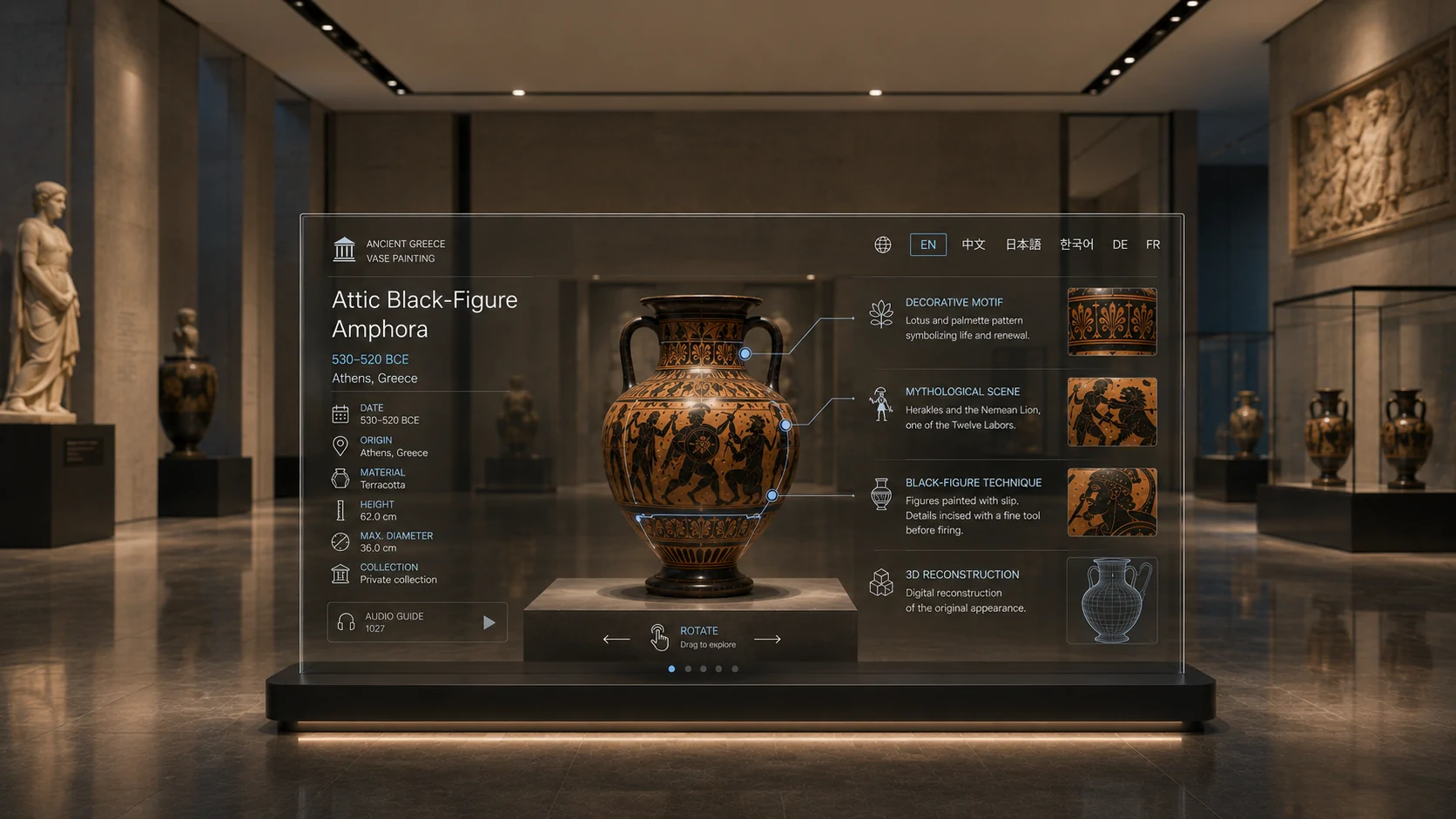

Transparent interpretation display aligned with a visible museum artifact

Display, glass and background

Confirm the active area, transparency, mounting position, sightlines and the physical scene behind the display.

Plan the display environment

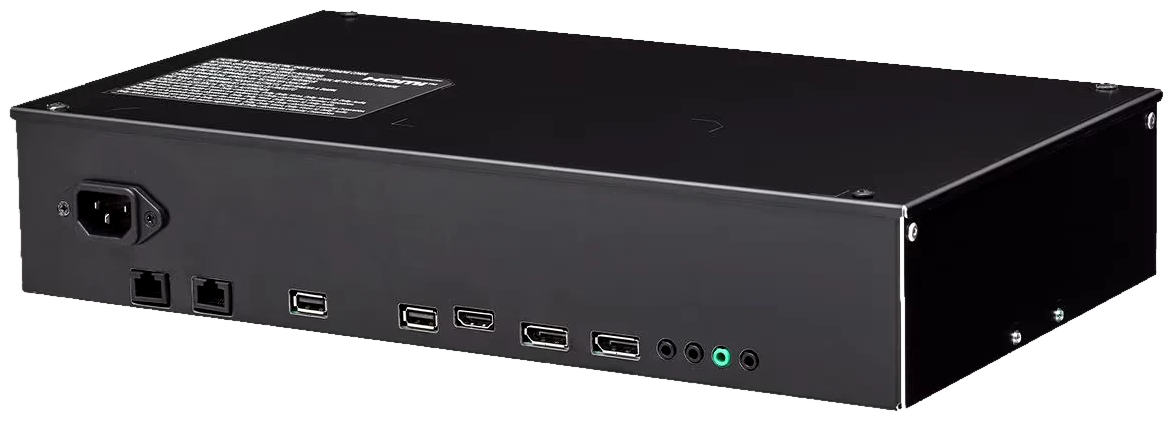

Open display enclosure showing the controller board, power supply, signal cables and service connections

Playback, control and interfaces

Define content sources, processing, network, power, touch and service access for the selected display.

Review system integration

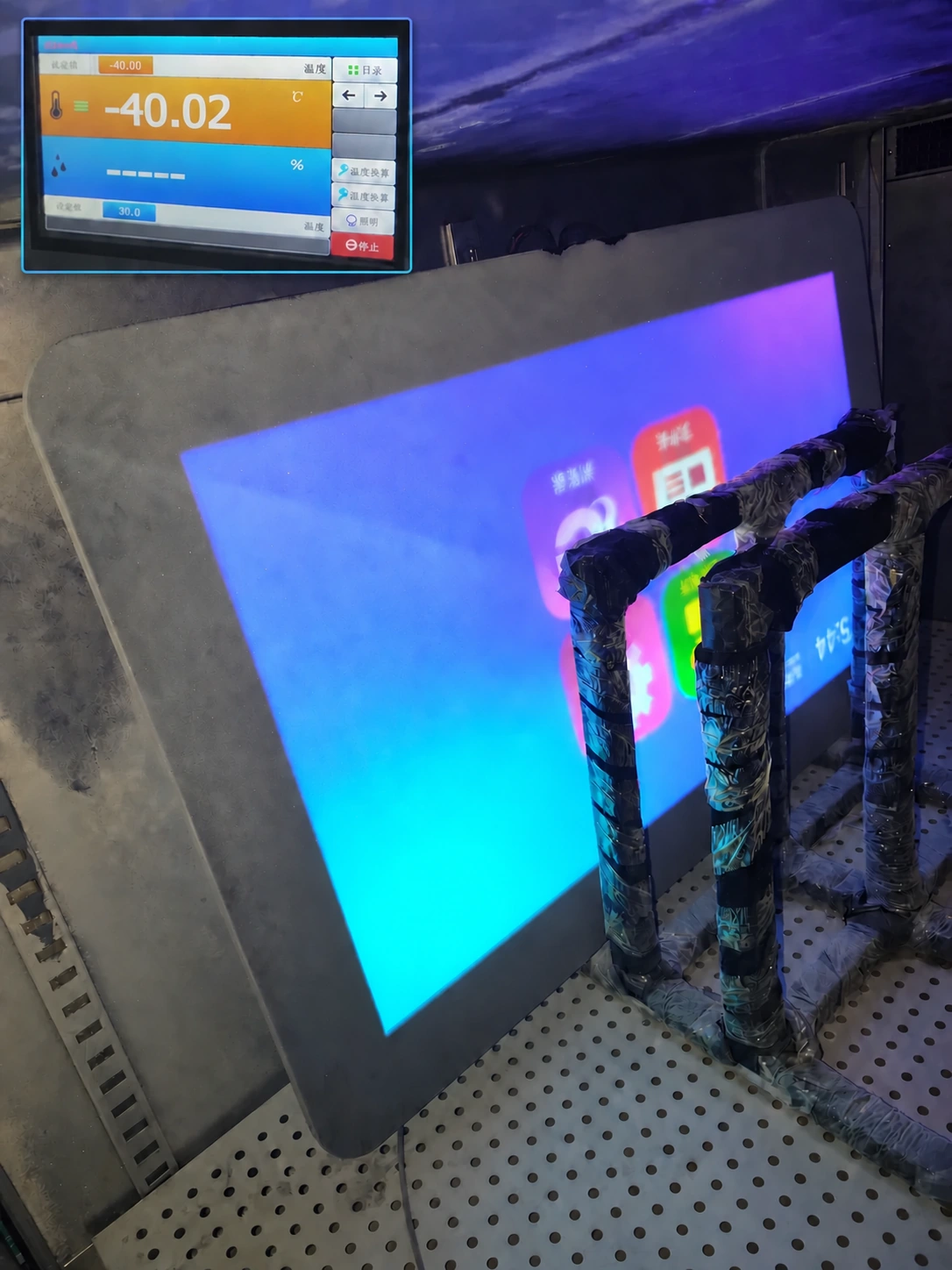

Display operating inside a climate chamber during environmental validation

Validation and acceptance

Agree what will be measured, photographed and documented before production release and shipment.

Define acceptance requirements

Transparent OLED Content Uses the Real Background

Near-black areas contribute little or no image light. Display transmission, bright content, reflections, glazing, average picture level and the physical scene together determine the perceived result.

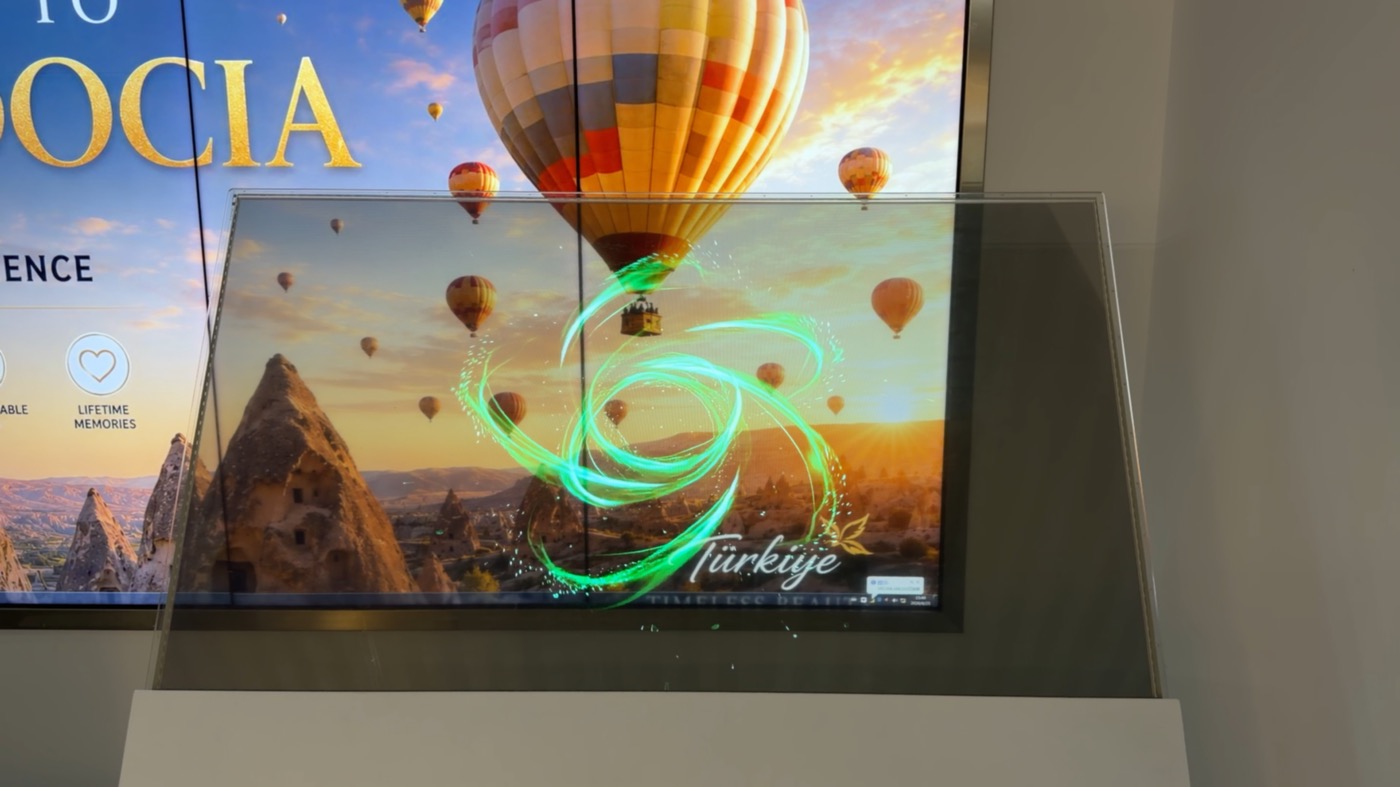

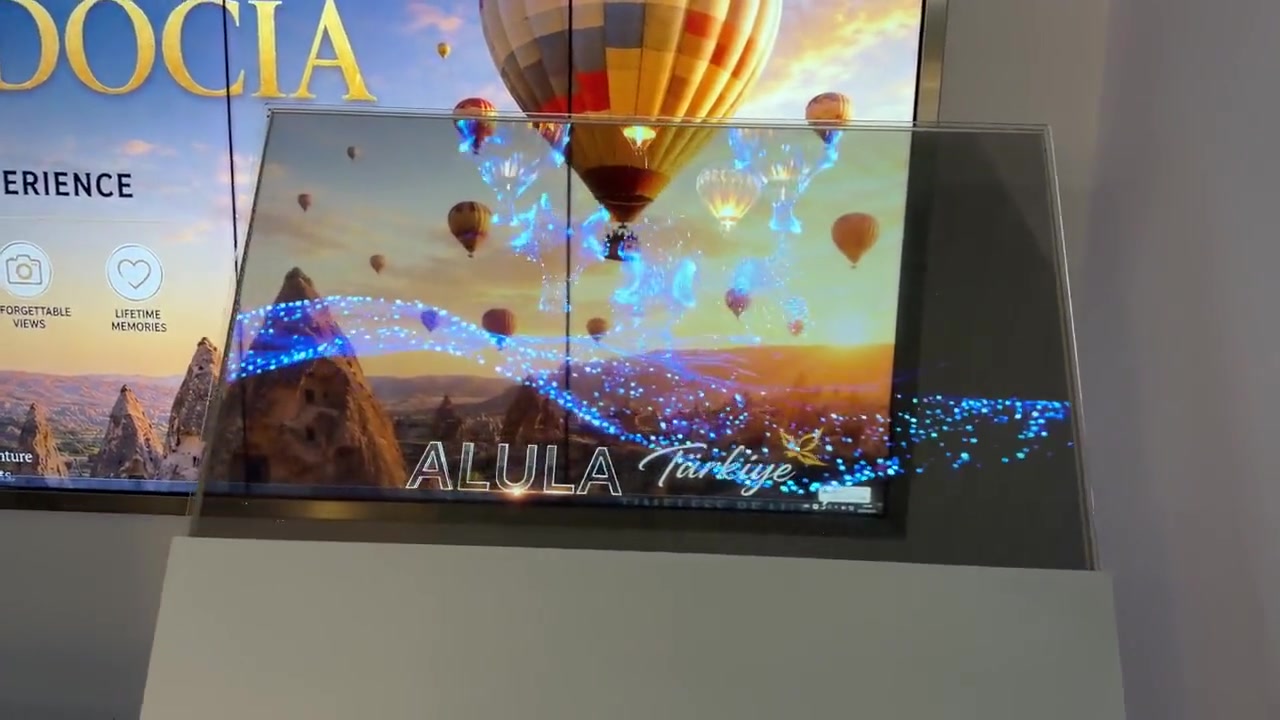

Application viewTransparent OLED glass overlay in front of a large background display

Transparent OLED content over a real scene

The same content behaves differently once background, reflections and display-off state are visible.

Content review checklist

Transparent OLED Content Planning

The content file, object behind the display, rear background and lighting plan need to be reviewed together.

Use transparency deliberately

Near-black areas contribute little or no image light. The visible scene still depends on display transmission, glazing, reflections and the physical background.

Control the physical scene

The object, rear wall, local lighting and reflections change readability as much as the file itself.

Keep palettes restrained

A controlled palette, clean geometry and bold motion usually read better than dense full-color compositions on a transparent display.

Prototype the real background

The same file can work in a dark showcase and fail in a bright lobby, so content review belongs in the installation test plan.

Applications for Transparent OLED

Transparent OLED is shown only where the physical object, person, view or architecture must remain visible behind the digital layer.

Transparent OLED

Transportation Window Displays

Passenger information layered over vehicle and station glazing while preserving the view behind the display.

Explore application Transparent OLED

Retail & Hospitality Transparent Displays

Product and guest information presented without hiding the physical showcase or interior.

Explore application Transparent OLED

Corporate Transparent Displays

Information and presentation content integrated into workplace glazing while preserving spatial openness.

Explore application Transparent OLED

Museum & Exhibition Transparent Displays

Interpretation layered over a visible artifact, model or physical collection display.

Explore application

Plan a Transparent OLED Project

Move from the application context to engineering requirements and content validation.

Rail and Mobility

Review glazing, sightlines, power and vehicle-interface inputs for a transparent window display.

Review Mobility Systems

Museum Applications

See how transparent content can be coordinated with artifacts, lighting and visitor sightlines.

Explore Museum Applications

Transparent OLED Installation Guide

Qualify the physical scene, light, glazing, content, duty and prototype tests.

Read the Guide

Transparent OLED Content Design

Plan contrast, backgrounds, operating states and representative test scenes.

Read the Content Guide

Transparent OLED System Architecture

This topology is specific to transparent OLED: the visible display head, signage box or OLED controller, glass, touch, background, power and cable constraints are resolved as one installation.

Transparent OLED Procurement and Delivery

Plan acceptance, documentation, packing, warranty scope and spare parts around the selected commercial configuration. Any 77-inch consumer television route is reviewed separately as a self-contained product.

Quality and Acceptance

Define inspection, validation evidence and shipment-release criteria for the selected system.

Review Quality and Acceptance

Delivery and Support

Review supply packages, handover documents, logistics inputs, warranty boundaries and spares planning.

Review Delivery and Support

Buyer FAQ

Get direct answers about quotation inputs, quantity, samples, timing, certificates and after-delivery support.

Read the Buyer FAQ

Request a Transparent OLED Configuration

Share the application and available project inputs so the product and integration package can be quoted.

Quote readiness checklist

Request a Transparent OLED Quote
WhatsApp
