OLED ELECTRONICS · SUPPLY EXAMPLE
OLED controller package — four matched sets
VITREVIA supplied four matched OLED controller assemblies with custom housings, protected electronics, display scaling and dedicated cabling. RK3576 Linux units were selected for this order.
What VITREVIA supplied
The order defined four matched controller assemblies with the same electronics, protection, cabling and commercial terms.
4 matched sets
Every line item was released in a quantity of four for a consistent multi-unit program.
Playback selected for this order
RK3576 Linux control units with 4 GB memory and 32 GB storage provided the application and playback layer.
Protected electronics
Custom enclosures and dust-proof, moisture-proof and flame-retardant coating were included.
21-day supply term
The released component package carried a 21-day supply term under EXW Shenzhen conditions.
System Boundary Defined Before Supply
The package separated compute, display scaling, panel drive, protection and cabling into explicit, purchasable line items.
Included in the released specification

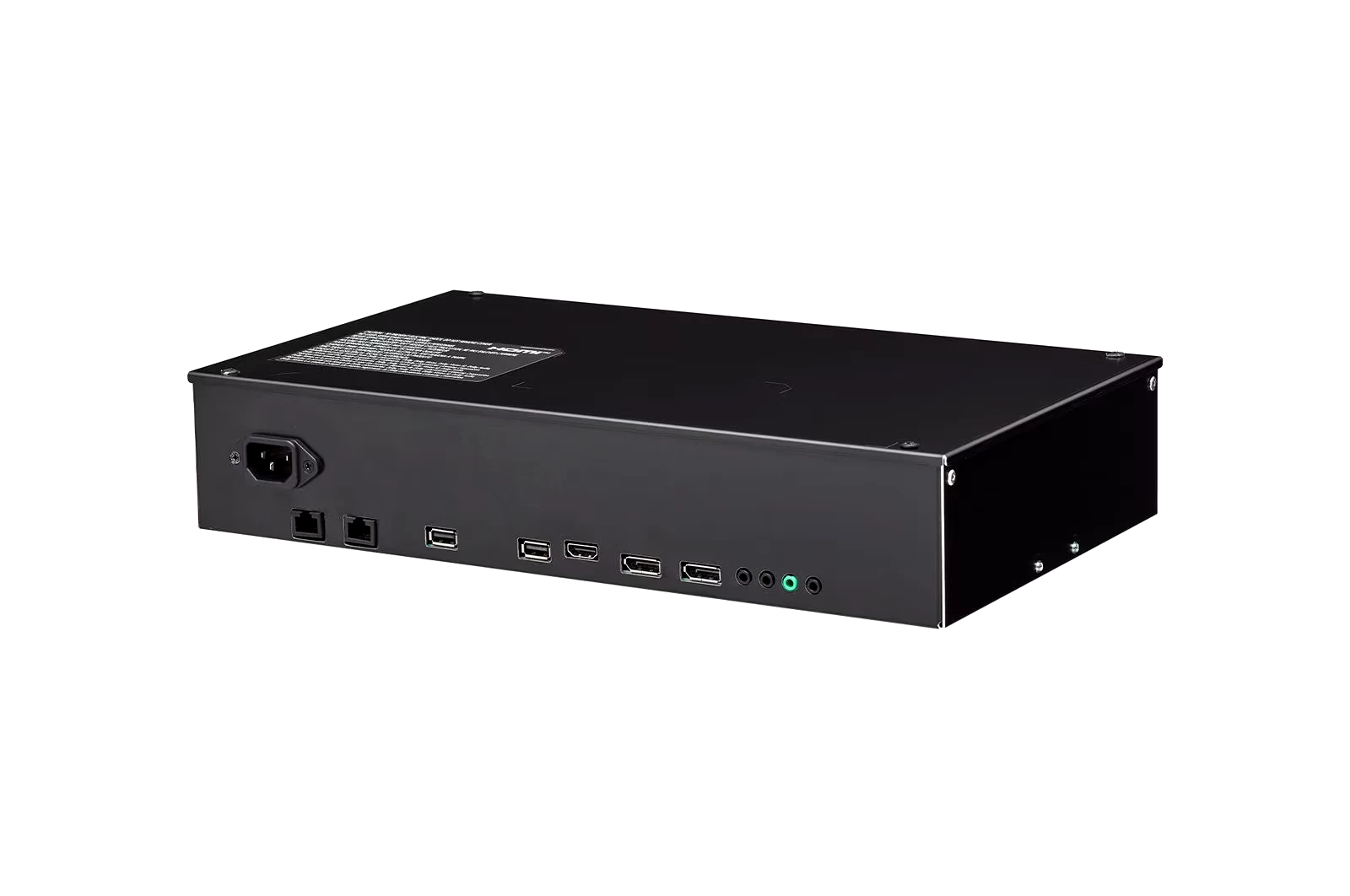

- customized external driver housings
- OLED driver boards, model 586
- protective conformal coating
- RK3576 Linux control units
- display scaler boards with heatsinks
- 30 cm and 50 cm V-by-One cable sets
How this example applies to a new project
The enclosure, controller, protection, scaling and cable set are released together for the selected OLED display and application.
Matched as one package
Controller hardware, display scaling, protection, enclosure and cable lengths are defined against the selected OLED assembly.
Configured for each order
Playback platform, interfaces, enclosure, protection and cable routing are selected for the application. This order used Linux; other available product configurations include Android and Windows.
Need a Defined OLED Control Package?
Share the display model, interfaces, quantity, enclosure constraints and delivery target. VITREVIA will define the control and supply boundary.
